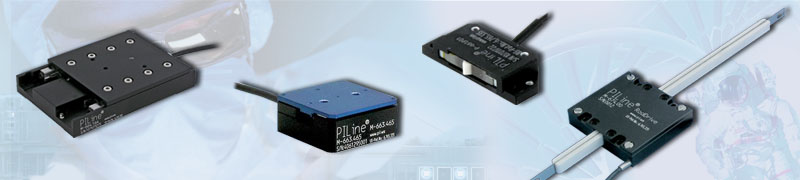

PILine® Ultrasonic Piezo Ceramic Motors can provide rapid acceleration and very high speed. They are are based on a patented ceramic drive developed by PI. At the heart of each motor / actuator is a rectangular piezo ceramic plate (the stator), segmented by two electrodes. Depending on the desired direction of motion, the left or right electrode of the piezoceramic plate is excited to produce high-frequency eigenmode oscillations to hundreds of kilohertz (ultra-sonic). A motion transfer tip (pusher) attached to the plate moves along an inclined linear path at the eigenmode frequency and couples nanometric movements at high frequency into a ceramic runner (rod). This princople also works for circular runners in rotary actuators. These ceramic motors provide lower resolution (to 50 nanometers) and lower forces (to 10 N) than PiezoWalk® type ceramic motors, but much higher velocities (to 500 mm/sec). They are very stable and self-clamping at rest with no heat generation or servo dither.

M-272 Linear Shaft Motor with Ultrasonic Ceramic Drive for Automation

Fast: Velocity to 200 mm/second Integrated Linear Encoder Integrated Linear Guiding System Force Generation up to 8 N Self Locking at Rest w/ No Heat Generation These ultrasonic-motor based piezo linear drives provide an alternative to classical motors when small dimensions and/or high speed are important. PDF Brochure | Questions on this Product?

RodDrive Ultrasonic Motor Actuators

Fast: up to 500 mm/sec Positioning range up to 150 mm Min. Incremental Motion to 50 nanometers Self Locking at Rest w/ No Heat Generation These ultrasonic-motor based piezo linear drives provide an alternative to classical motors when small dimensions and/or high speed are important. They consist of a ceramic rod (runner) preloaded by piezo linear motors from both sides. Depending on the way of integration, either the rod or the motor block can be clamped. PDF Brochure | Questions on this Product?

P-661 Small Ultrasonic Piezo Linear Motor

Fast: Velocity to 500 mm/second, Acceleration to 5 g Patented Principle Min. Incremental Motion to 0.05 µm Self-Locking to 1.5 N No Electro-Magnetic Fields MTBF 20,000 h PILine® ultrasonic ceramic motors are very compact, yet generate high driving and holding forces (self locking at rest). The patented drive principle is based a piezoceramic plate, which is excited to produce high-frequency (100 kHz range) eigenmode oscillations. A motion transfer tip attached to the plate moves along an inclined linear path at the eigenmode frequency, a few nanometers each cycle. Through its contact with the ceramic runner bar coupled to the positioning mechanics, motion is achieved. PDF Brochure | Questions on this Product?

M-661 Small Linear Table with Ultrasonic Linear Motors

Patented Ultrasonic Piezo Linear Motor, Fast, Precise and Self Locking at Rest Smallest Linear Table with High Speed Ultrasonic Linear Motor Positioning ranges to 20 mm Fast: Velocity to 500 mm/second, Acceleration to 5 g Min. Incremental Motion to 50 nm XY-Combination Possible MTBF 20.000 h Vacuum Versions to 10-7 hPa These low-profile, miniaturized translation tables provide acceleration to 5g with millisecond responsiveness and high speed to 500 mm/sec in an extremely compact package. A similar closed-loop table with optical linear encoder is available as model M-663. PDF Brochure | Questions on this Product?

M-663 Small Closed-Loop Ultrasonic Linear Motor Table

Patented Ultrasonic Piezo Linear Motor, Fast, Precise and Self Locking at Rest Max. Velocity 400 mm/second, Rapid Acceleration Smallest Translation Table with Closed-Loop Linear Motor and Encoder 19 mm Positioning range 0.1 µm Closed-Loop Resolution with Direct Metrology Linear Encoder Vacuum-Compatible Versions Available Very Compact XY Combinations This small, closed-loop micropositioning table is driven by a very compact ultrasonic motor providing high velocity to 400 mm/second and resolution of 0.1 microns. An integrated linear encoder guarantees high precision and repeatability. PDF Brochure | Questions on this Product?

M-664 Closed-Loop Ultrasonic Linear Motor Table

Patented Ultrasonic Piezo Linear Motor, Fast, Precise and Self Locking at Rest 25 mm Positioning range, 0.1 µm Resolution, 400 mm/second 15 mm Ultra-Low Profile Direct Metrology Linear Encoder High Guiding Accuracy with Crossed Roller Bearings Compact XY Combinations This small, closed-loop linear micropositioning table provides an extremely low profile of only 15 mm. An integrated linear encoder guarantees high resolution of 100 nanometers and high repeatability. PDF Brochure | Questions on this Product?
